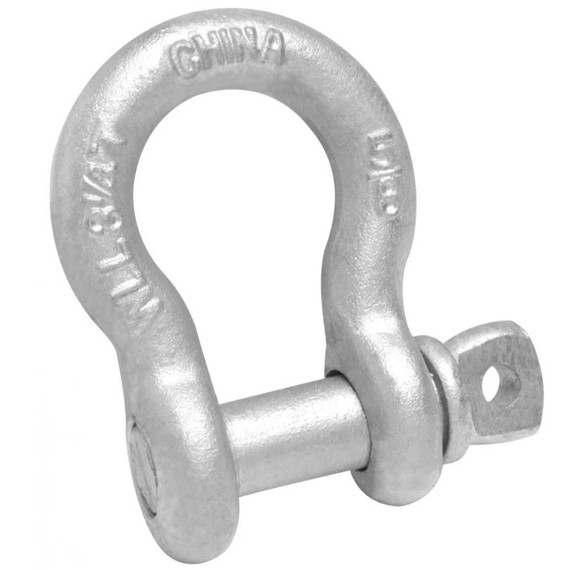

Campbell Galvanized Screw Pin Anchor Shackle
SKU:
837433-P
UPC:
020418211683
$4.49 - $7.49
Features
- Drop-forged carbon steel
- WLL marked on each shackle
- Galvanized finish
Additional Information
3/16"
- A Dimension: 1/4"
- B Dimension: 1/4"
- C Dimension: 7/8"
- D Dimension: 3/8"
- E Dimension: 5/8"
- F Dimension: 1/2"
- Working load limit short ton: 1/3 ton
- Weight: 0.06 lb
1/4"
- A Dimension: 1/4"
- B Dimension: 1/4"
- C Dimension: 1-1/8"
- D Dimension: 1/2"
- E Dimension: 3/4"
- F Dimension: 3/4"
- Working load limit short ton: 1/2 ton
- Weight: 0.11 lb
3/8"
- A Dimension: 3/8"
- B Dimension: 3/8"
- C Dimension: 1-1/2"
- D Dimension: 5/8"
- E Dimension: 1"
- F Dimension: 1"
- Working load limit short ton: 1 ton
- Weight: 0.32 lb
Specifications
- Finish: Galvanized
- Material: Carbon steel
- Warning: Do not exceed the working load limit
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
